Mamba Rolls And Flat Plates Woven Wire Screen Mesh for Aggregate and
Mining
Woven wire screen is the most common type of screening media used
in aggregate processing and mining applications due to its features
of high open area, high weave precision and high cost-performance
ratio.
Aperture tolerance only ±3% is far superior to the industry
standards in domestic and global markets, which can lead to
high-precision screening and guaranteeing the percentage of
material qualification. The high quality materials can yield a
higher profit for manufacturers.
Square opening wire mesh is a most commonly used screening media by
reason of its highly precise mesh apertures. MamBa’s woven wire
screen is offered with the most precision mesh aperture within the
global industry. Our square wire mesh features an aperture
deviation of only ±3%, which is far superior to international
standards of DIN47833 (Europe) and ASTM 2016-15 (North America).
We are able to deliver options of woven wire weave styles to
perfectly suit your filtration and separation applications,
| Woven Wire Screen Mesh |
| Wire Diameter | 0.50mm-19.05mm |
| Weaving Type | Double Crimp,Lock Crimp,Flat Top,Inter Crimp |
| Aperture | 1.00mm-152.00mm |
| Opening Type | Square or Slot |
| Max width | 2500.00mm |
| Products Type | Flat Plates,Rolls, Folding Hook |
| Material | High Carbon Steel Wire or Stainless Steel Wire. |
Weave Types:
Material:
highly abrasion-resistant spring steel wire or stainless spring
steel wire.
| No | Grade | Chemical Composition |
| C | Si | Mn |
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 |
| 3 | 55 | 0.52-0.60 |
| 4 | 60 | 0.57-0.65 |
| 5 | 65 | 0.62-0.70 |
| 6 | 70 | 0.67-0.75 |
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| No | Grade | Chemical Composition |
| C | Ni | Mn | Cr |
| 1 | 304 | ≤0.08 | 8.0-11.0 | ≤2 | 18.0-20.0 |
| 2 | 321 | ≤0.08 | 9.0-12.0 | ≤2 | 17.0-19.0 |
| 3 | 316 | ≤0.08 | 10.0-14.0 | ≤2 | 16.0-18.5 |
| 4 | 2205 | ≤0.03 | 4.5-6.5 | 2.5-3.5 | 21.0-24.0 |
| 5 | 2507 | ≤0.03 | 6-8 | ≤1.2 | 24-26 |
Edge Types:
Features:
Easy to Install
Lower Cost
Higher screening accuracy
Require less maintenance
Sturdy construction
Installation instructions:
the screen is installed with using of tension metallic bars into a
separator over different types of hook strips, further with using
of side bars and wedges, possibly is fastened into a frame.

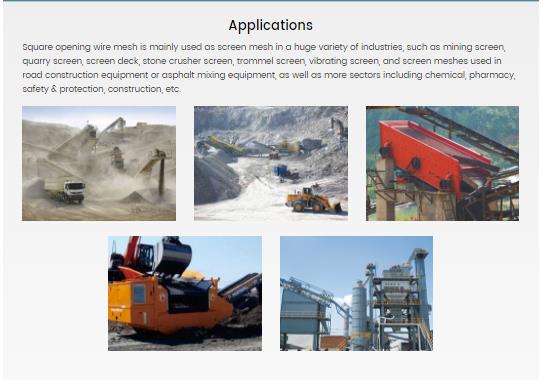

Application:
applies to vibrating screens for primary sieving of mine and
aggregates, as well as asphalt mixer plant in road building.
