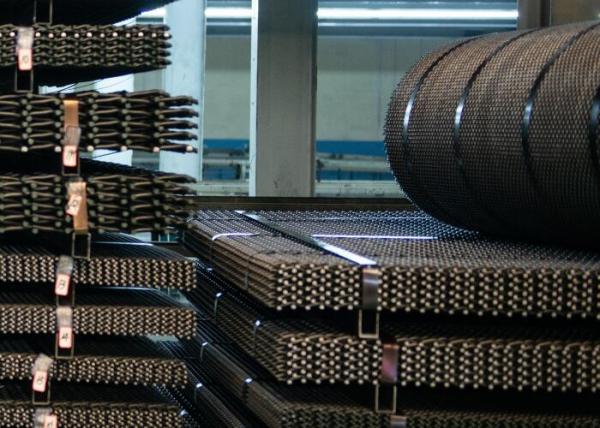

Plain weave woven wire mesh sand screen / aggregate screen / carbon
vibrating woven screen
Woven wire
screen stands out as the predominant choice for screening media in
aggregate processing and mining applications, thanks to its notable
features such as high open area, precise weave, and an impressive
cost-performance ratio.
The remarkable aperture tolerance of only ±3% sets MamBa's woven
wire screen apart from industry standards, both domestically and
globally. This level of precision not only ensures high-precision
screening but also guarantees the material qualification
percentage. The utilization of high-quality materials further
enhances profitability for manufacturers.
Moreover, MamBa's commitment to excellence is evident in the square
opening wire mesh, recognized as one of the most widely used
screening media due to its exceptionally precise mesh apertures.
MamBa's woven wire screen takes pride in offering the most precise
mesh aperture globally, with an impressive aperture deviation of
only ±3%, surpassing international standards like DIN47833 (Europe)
and ASTM 2016-15 (North America).
With the ability to provide various woven wire weave styles, MamBa
ensures tailored options to perfectly match your filtration and
separation applications.
| Woven Wire Screen Mesh |
| Wire Diameter | 0.50mm-19.05mm |
| Weaving Type | Double Crimp,Lock Crimp,Flat Top,Inter Crimp |
| Aperture | 1.00mm-152.00mm |
| Opening Type | Square or Slot |
| Max width | 2500.00mm |
| Products Type | Flat Plates,Rolls, Folding Hook |
| Material | High Carbon Steel Wire or Stainless Steel Wire. |
Weave Types:
Material:
highly abrasion-resistant spring steel wire or stainless spring
steel wire.
| No | Grade | Chemical Composition |
| C | Si | Mn |
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 |
| 3 | 55 | 0.52-0.60 |
| 4 | 60 | 0.57-0.65 |
| 5 | 65 | 0.62-0.70 |
| 6 | 70 | 0.67-0.75 |
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| No | Grade | Chemical Composition |
| C | Ni | Mn | Cr |
| 1 | 304 | ≤0.08 | 8.0-11.0 | ≤2 | 18.0-20.0 |
| 2 | 321 | ≤0.08 | 9.0-12.0 | ≤2 | 17.0-19.0 |
| 3 | 316 | ≤0.08 | 10.0-14.0 | ≤2 | 16.0-18.5 |
| 4 | 2205 | ≤0.03 | 4.5-6.5 | 2.5-3.5 | 21.0-24.0 |
| 5 | 2507 | ≤0.03 | 6-8 | ≤1.2 | 24-26 |
Edge Types:
Features:
Easy to Install
Lower Cost
Higher screening accuracy
Require less maintenance
Sturdy construction
Installation instructions:
the screen is installed with using of tension metallic bars into a
separator over different types of hook strips, further with using
of side bars and wedges, possibly is fastened into a frame.
Application:
applies to vibrating screens for primary sieving of mine and
aggregates, as well as asphalt mixer plant in road building.
