    High Performance Steel Screen Mesh Anti - Clogging Self Cleaning Screens

    Ask Lasest Price
    Brand Name : Mam Ba
    Model Number : 003
    Certification : ISO
    Price : negotiable
    Payment Terms : L/C, D/P, T/T, Western Union
    Supply Ability : 80pcs per day
    Delivery Time : within 15days
    • Product Details
    • Company Profile

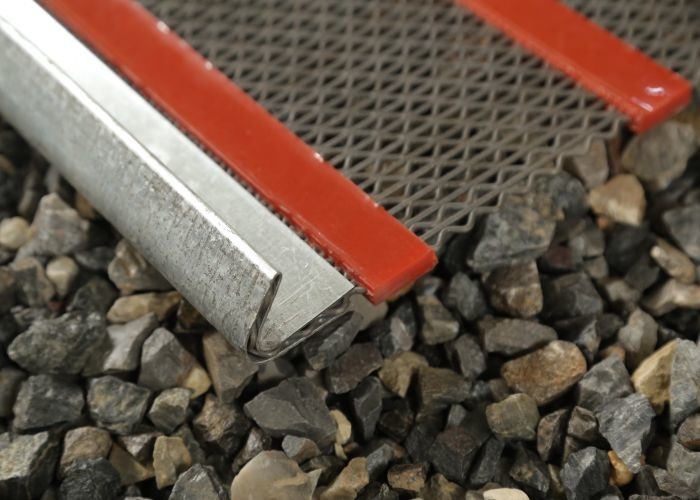

    High Performance Steel Screen Mesh Anti - Clogging Self Cleaning Screens

    Anping Mam Ba Wire Mesh MFG Company, which is founded in 1989, has been devoted into wire cloth and screen media production for 26 years. The company owns 18 patented products, all of them have been up to EU, GB and ASTM standards. The company has acquired certificates of ISO 14001 Environmental Management System, ISO 9001 Quality Management System and OHSAS 18001 Occupation Health Safety Management System.


    Poly-Ripple Anti-clogging Wire Mesh Screens

    Aperture / Opening: Diamond Opening, Weaving Opening, Triangle Opening

    Specification: width up to 2.5m, no length limitation;

    Edge: Raw Edge, plated sheathed, hooked, inner plated welded etc.;

    Wire Materials: Spring Steel (High Carbon Steel), or Stainless steel (e.g. 304 & 316)


    Advantages of the Anti-blocking Screen :

    • High open area

    • Exceptional cleaning ability

    • Suited for applications with a high percentage of near-size material which is prone to pegging or blinding

    • Used for declogging very sticky materials with no flacky products

    • Removes fines, produces a cleaner retained product and reduces blinding of wet and sticky material


    There are three types according to weaving way:


    A B C


    C TYPE: same self cleaning action reinforced for heavier loads and bed depth.


    Some specifications of B type are reference. Special sizes can be at customized.

    Aperture mmWire dia mmOpening area %
    1.51.2-1.2550
    1.751.2-1.2555
    21.2-1.657-51
    2.51.2-260-53
    31.2-264-57
    3.51.2-267-57
    41.2-270-62
    4.51.2-275-64
    51.5-2.871-56
    5.51.5-2.869-62
    61.5-2.873-60
    6.52-2.870-66
    72-3.1572-67
    7.52-3.1562-60
    82-3.1574-69
    8.52-3.577-74
    92-3.579-69
    102-3.580-74
    112-3.585-73
    122-484-71
    12.52.5-480-71
    133-473-70
    143-482-73
    153.5-578-69
    15.53.5-578-67
    163.5-575-69
    174-580-70
    184-580-76
    194-582-77
    204-586-77
    224-684-78
    244-781-76
    254-783-78
    274-783-79
    284-883-78
    304-885-79
    354-886-79
    404-989-78
    454-990-80

    The Anti-blocking Screen is a method of weaving the wire mesh. The overlap points of warp are not prominent, and the surface is flat.

    Anti-blocking Screen is easy to leak, wear-resistant and corrosion-resistant.

    High Performance Steel Screen Mesh Anti - Clogging Self Cleaning ScreensHigh Performance Steel Screen Mesh Anti - Clogging Self Cleaning Screens

    Self-cleaning screens are available in a side-tensioned or end-tensioned configuration.
