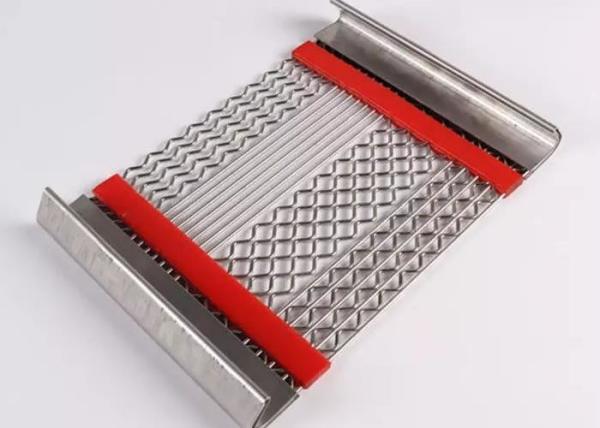

MAMBA Poly Self Cleaning Screen Mesh
MamBa Screen Mesh Company is committed to maintaining a leading
position in global screen media market. To uphold the commitment we
make, we work closely with our worldwide customers to make sure
every screen is featured by robust structure, long wear life and
precise opening size to help customers in increasing throughput
while maintaining high screening accuracy.
Poly Self Cleaning Screen Mesh Material:
highly abrasion-resistant spring steel wire or stainless spring
steel wire.
| No | Grade | Chemical Composition |
| C | Si | Mn |
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 |
| 3 | 55 | 0.52-0.60 |
| 4 | 60 | 0.57-0.65 |
| 5 | 65 | 0.62-0.70 |
| 6 | 70 | 0.67-0.75 |
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| No | Grade | Chemical Composition |
| C | Ni | Mn | Cr |
| 1 | 304 | ≤0.08 | 8.0-11.0 | ≤2 | 18.0-20.0 |
| 2 | 321 | ≤0.08 | 9.0-12.0 | ≤2 | 17.0-19.0 |
| 3 | 316 | ≤0.08 | 10.0-14.0 | ≤2 | 16.0-18.5 |
| 4 | 2205 | ≤0.03 | 4.5-6.5 | 2.5-3.5 | 21.0-24.0 |
| 5 | 2507 | ≤0.03 | 6-8 | ≤1.2 | 24-26 |
Apeture and Diameter
| Aperture(mm) | Wire Diameter(mm) |
| 1.25 | 1.00 | | | |
| 2.00 | 1.00 | 1.37 | | |
| 2.50 | 1.37 | 1.60 | 1.80 | |
| 2.75 | 1.37 | 1.60 | 1.80 | 2.00 |
| 3.15 | 1.37 | 1.60 | 1.80 | 2.00 |
| 3.50 | 1.37 | 1.60 | 1.80 | 2.00 |
| 4.00 | 1.60 | 1.80 | 2.00 | 2.50 |
| 4.50 | 1.60 | 1.80 | 2.00 | 2.50 |
| 5.00 | 1.80 | 2.00 | 2.50 | 3.15 |
| 6.00 | 1.80 | 2.00 | 2.50 | 3.15 |
| 6.30 | 2.00 | 2.50 | 2.76 | 3.15 |
| 7.10 | 2.00 | 2.50 | 2.76 | 3.15 |
| 8.00 | 2.00 | 2.50 | 2.76 | 3.15 |
| 9.00 | 2.50 | 2.76 | 3.15 | 3.50 |
| 9.50 | 2.50 | 2.76 | 3.15 | 4.00 |
| 10.00 | 4.00 | | | |
| 11.10 | 2.50 | 2.76 | 3.15 | 4.00 |
| 12.70 | 3.15 | 4.00 | 4.50 | |
| 14.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 15.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 16.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 17.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 18.00 | 4.00 | 4.50 | 5.00 | |
| 19.00 | 4.00 | 4.50 | 5.00 | |
| 20.00 | 4.00 | 4.50 | 5.00 | |
| 22.00 | 4.00 | 4.50 | 5.00 | |
| 25.40 | 4.00 | 4.50 | 5.00 | |
| 28.00 | 4.00 | 4.50 | 5.00 | |
| 30.00 | 4.50 | 5.00 | 5.50 | 6.00 |
| 31.50 | 4.50 | 5.00 | 5.50 | 6.00 |
| 38.00 | 5.00 | 5.50 | 6.00 | 8.00 |
| 44.00 | 6.00 | 8.00 | 9.00 | |
| 50.00 | 8.00 | 9.00 | 11.10 | |
| 57.00 | 8.00 | 9.00 | 11.10 | 12.70 |
| 63.00 | 8.00 | 9.00 | 11.10 | 12.70 |
| 76.20 | 8.00 | 9.00 | 11.10 | 12.70 |
Poly Self Cleaning Screen Mesh Opening Shape
We manufacture and supply anti-clogging screen panels with
different sizes, shapes, patterns and apertures
Poly Self Cleaning Screen Mesh Feature:
1.Safer,Easier and Stable operation
2.Lower wear compared to conventional steel woven wire mesh
3.High tensile strength
4.Various Aperture
5.Pass Heat Treatment High Carbon Steel Wire
6.AISI 304 316 Stainless Steel
7.Different hooks available
8.Cost Effective
Poly Self Cleaning Screen Mesh Benifits:
1.Anti-Clogging properties
2.Self-Cleaning properties
3.Larger screening area
4.Longer service life
5.High Efficiency
6.Highly resistant to abrasion, wear and tear
7.Resistant to corrosion
8.Shorter cleaning down-times
9.Wide range of applications
10.Various Opening Shape
Poly Self Cleaning Screen Mesh Application:
1.Aggregate Processing
2.Washing Applications
3.Cement Manufacturing
4.Asphalt Plants
5.Mining Application
