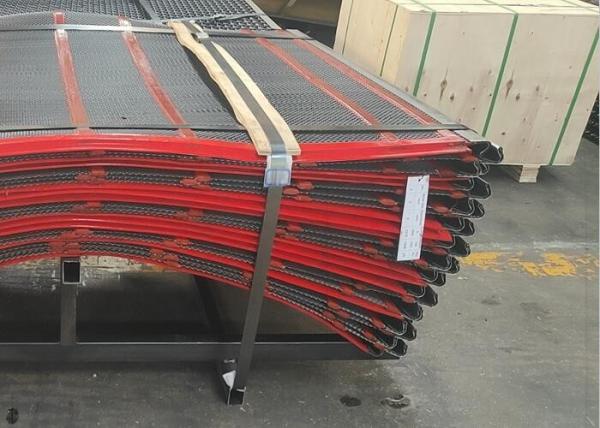

Anti-Clogging High Vibration Wire Screen for and Metso Vibrating
Screen
Mam Ba Screen Mesh With 40 years around in the screening media
industry business line, our knowledge and expertise has evolved to
where we can supply the clients with the optimal products and
solution to their screening requirements at the lowest total cost.
We offer a complete range of openings, wire diameters, materials
and weave types enabling us to provide you with the optimum wire
screen media product for your application. Our extensive
inventories allow us to supply you the most suitable product to
your exact applications.
As with all MamBa Screen Mesh MFG Company’s screening media, our
Square opening wire mesh screen range is fully backed by a
good-skilled and well-trained team with knowledge and experience
built over years in screening medias. For applications demanding
maximum productivity and service at the best possible cost, it
demands square wire screening medias, from MamBa Screen Mesh MFG
Company.
FLEX-MAT HIGH-VIBRATION WIRE SCREEN
HIGHER SCREENING EFFICIENCY
FLEX-MAT provides more screening efficiency than any other
screening media, with up to 40% more throughput and 5 times more
wear life. It also eliminates blinding, clogging
and pegging issues, while providing precise product separation and
reducing or eliminating the need for washing.
STRATIFICATION
FLEX-MAT vibrating wires add a high frequency vibration (6,000 to
10,000 cycles per minute), on top of the standard vibration of a
screen box, which is around 800 cycles per minute.
Compared to woven, polyurethane or rubber screens, which are rigid
and static media, the incremental frequencies induced by FLEX-MAT
vibrating wires accelerate the natural stratification process of
the material bed for maximum throughput, with no carryover,
resulting in a high-quality retained product.
THE FLEX-MAT SCREEN TECHNOLOGY ALLOWS WIRES, BONDED TO LIME GREEN
POLYURETHANE STRIPS, TO VIBRATE INDEPENDENTLY FROM HOOK TO HOOK
OPEN AREA
FLEX-MAT offers the best open area for more throughput:
1.No cross wires
2.A smaller wire diameter, due to higher quality of the optimum
patented wire and the flat
screening surface
3. Widest range of wire diameters per opening
WEAR LIFE
FLEX-MAT offers a longer wear life than woven wire screens and
depending on the application, outlasts polyurethane and rubber
media.
1. The flat surface offers 100% of surface wear, compared to only
the upper “knuckles” of woven screens.
2.The even wear of the wires, maintain their the opening within
specification, as compared with polyurethane panels, which lose
their opening specification with wear due to the slight “V” shape
of their opening.
3.The vibrating effect of the wire accelerates material passing on
all decks (less material on the bed), and causes the material to
“micro-jump” and hit the wire straight on, instead of sliding and
chipping away at the wire.
4.The elimination of blinding, pegging, and clogging reduces the
wire degradation.
5.The angle alignment on the square model (Series D) limits the
impact on the wires facing the flow.
Specification:
| Aperture(mm) | Wire Diameter(mm) |
| 1.25 | 1.00 | | | |
| 2.00 | 1.00 | 1.37 | | |
| 2.50 | 1.37 | 1.60 | 1.80 | |
| 2.75 | 1.37 | 1.60 | 1.80 | 2.00 |
| 3.15 | 1.37 | 1.60 | 1.80 | 2.00 |
| 3.50 | 1.37 | 1.60 | 1.80 | 2.00 |
| 4.00 | 1.60 | 1.80 | 2.00 | 2.50 |
| 4.50 | 1.60 | 1.80 | 2.00 | 2.50 |
| 5.00 | 1.80 | 2.00 | 2.50 | 3.15 |
| 6.00 | 1.80 | 2.00 | 2.50 | 3.15 |
| 6.30 | 2.00 | 2.50 | 2.76 | 3.15 |
| 7.10 | 2.00 | 2.50 | 2.76 | 3.15 |
| 8.00 | 2.00 | 2.50 | 2.76 | 3.15 |
| 9.00 | 2.50 | 2.76 | 3.15 | 3.50 |
| 9.50 | 2.50 | 2.76 | 3.15 | 4.00 |
| 10.00 | 4.00 | | | |
| 11.10 | 2.50 | 2.76 | 3.15 | 4.00 |
| 12.70 | 3.15 | 4.00 | 4.50 | |
| 14.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 15.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 16.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 17.00 | 3.15 | 4.00 | 4.50 | 5.00 |
| 18.00 | 4.00 | 4.50 | 5.00 | |
| 19.00 | 4.00 | 4.50 | 5.00 | |
| 20.00 | 4.00 | 4.50 | 5.00 | |
| 22.00 | 4.00 | 4.50 | 5.00 | |
| 25.40 | 4.00 | 4.50 | 5.00 | |
| 28.00 | 4.00 | 4.50 | 5.00 | |
| 30.00 | 4.50 | 5.00 | 5.50 | 6.00 |
| 31.50 | 4.50 | 5.00 | 5.50 | 6.00 |
| 38.00 | 5.00 | 5.50 | 6.00 | 8.00 |
| 44.00 | 6.00 | 8.00 | 9.00 | |
| 50.00 | 8.00 | 9.00 | 11.10 | |
| 57.00 | 8.00 | 9.00 | 11.10 | 12.70 |
| 63.00 | 8.00 | 9.00 | 11.10 | 12.70 |
| 76.20 | 8.00 | 9.00 | 11.10 | 12.70 |

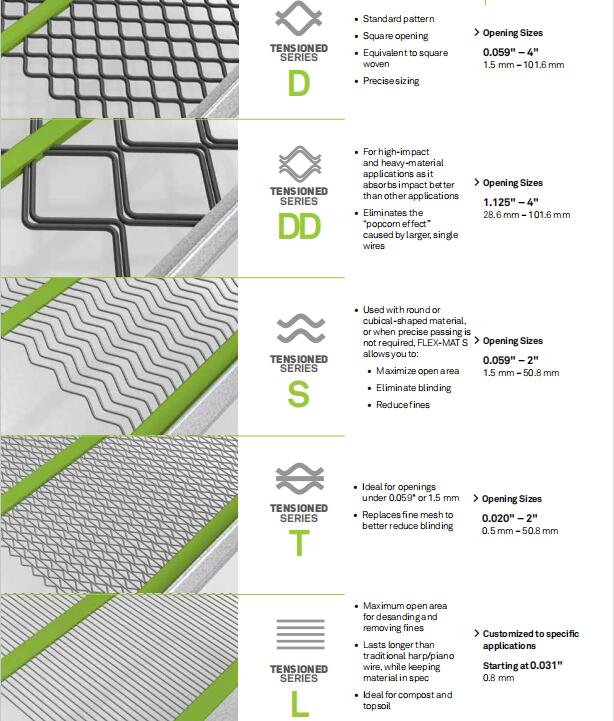

Shape of Opening:
Material:
highly abrasion-resistant spring steel wire or stainless spring
steel wire.
| No | Grade | Chemical Composition |
| C | Si | Mn |
| 1 | 45 | 0.42-0.50 | 0.17-0.37 | 0.50-0.80 |
| 2 | 50 | 0.47-0.55 |
| 3 | 55 | 0.52-0.60 |
| 4 | 60 | 0.57-0.65 |
| 5 | 65 | 0.62-0.70 |
| 6 | 70 | 0.67-0.75 |
| 7 | 65Mn | 0.62-0.70 | 0.90-1.20 |
| 8 | 72A | 0.70-0.75 | 0.15-0.35 | 0.30-0.60 |
| No | Grade | Chemical Composition |
| C | Ni | Mn | Cr |
| 1 | 304 | ≤0.08 | 8.0-11.0 | ≤2 | 18.0-20.0 |
| 2 | 321 | ≤0.08 | 9.0-12.0 | ≤2 | 17.0-19.0 |
| 3 | 316 | ≤0.08 | 10.0-14.0 | ≤2 | 16.0-18.5 |
| 4 | 2205 | ≤0.03 | 4.5-6.5 | 2.5-3.5 | 21.0-24.0 |
| 5 | 2507 | ≤0.03 | 6-8 | ≤1.2 | 24-26 |
Feature:
1.High screening efficiency
2.High go through rate
3.Less blinding, blocking or pegging
4.Less maintenance
Application:
